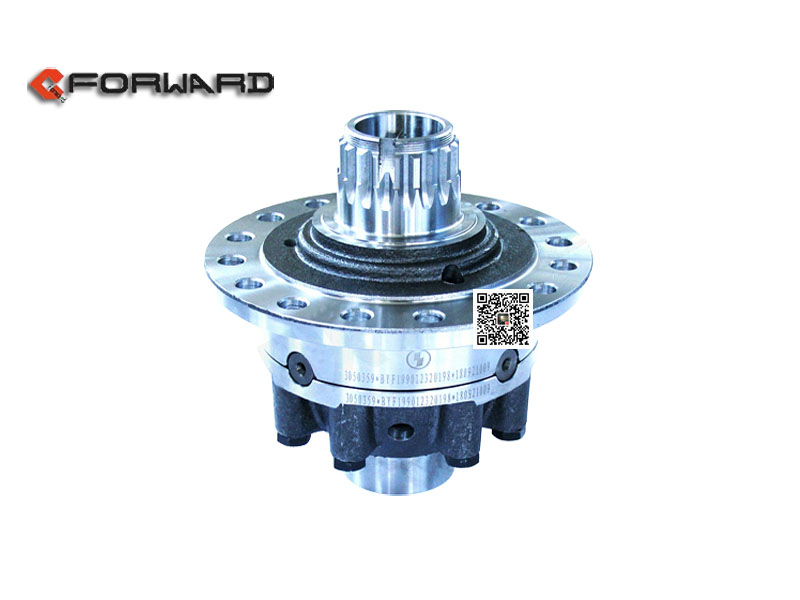

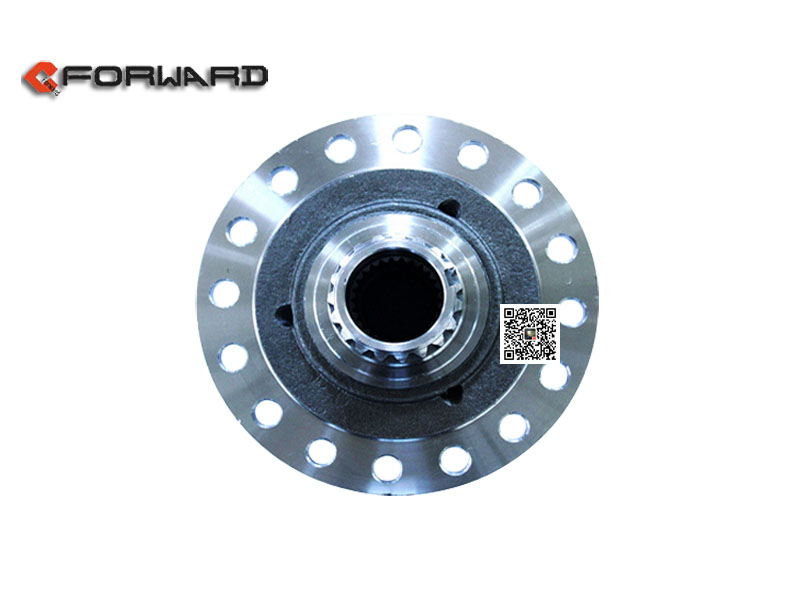

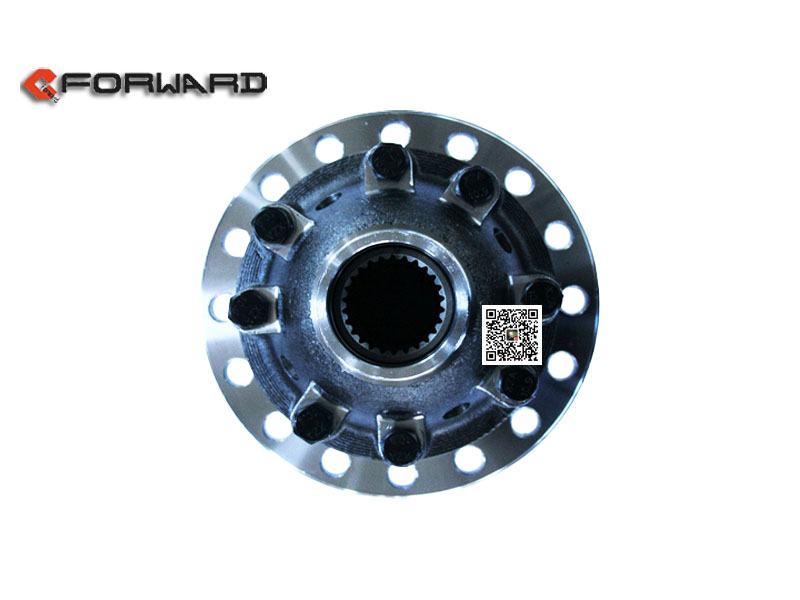

F19901232019801 差速器總成

濟南向前汽車配件有限公司供應F19901232019801 差速器總成【F19901232019801】,價格面議,下面是詳細參數及照片。
F19901232019801,Differential assembly,濟南向前汽車配件有限公司
F19901232019801,Differential assembly,濟南向前汽車配件有限公司F19901232019801,Differential assembly,濟南向前汽車配件有限公司F19901232019801,Differential assembly,濟南向前汽車配件有限公司

產品: Differential assembly
圖號:

F19901232019801

車型: SHACMAN
品牌: Forwar
Size: 265*255*255 mm
Weight: 23.1 kg
單價: 面議
所在地: 山東 濟南市 山東濟南泉利重配城
有效期至: 長期有效
最后更新: 2025-04-23 16:08
瀏覽次數: 311
從恒科汽配網上聯系我們

公司基本資料信息
詳細說明
服務條款 豪沃發動機總成
F19901232019801,Differential assembly,濟南向前汽車配件有限公司 F19901232019801,Differential assembly,濟南向前汽車配件有限公司 F19901232019801,Differential assembly,濟南向前汽車配件有限公司
   Working principle of differential:



     The differential adjustment is automatic and involves the "minimum energy consumption principle," in which all objects on earth tend to use the least energy. For example, if you put a bean in a bowl, the bean will automatically stay at the bottom of the bowl but never on the wall. Since the bottom of the bowl is the lowest possible energy (potential energy), it will automatically choose to stay still (minimum kinetic energy) instead of constantly moving. Similarly, the wheel will automatically tend to the state of the lowest energy consumption when turning, automatically according to the turning radius to adjust the rotation of the left and right wheels.

     When turning, because the outside wheel has to pull the phenomenon, the inside of the wheel has the phenomenon of slippage, two driving wheels can produce at this time in the opposite direction from the two additional force, because "the principle of minimum energy consumption", inevitably leads to both sides of the wheel speed is different, so as to destroy the balance of the three relations, and by reflecting on the axle shaft gear axle shaft, forcing the planetary gear rotation, make the inside of the half shaft speed slow, the lateral half shaft speed is accelerated, so as to realize the difference of on both sides of the wheel speed.

1 138090320159 Differential adjustment nut
2 190003326148 Tapered roller bearing 32216
3

Q151B1480TF2

Differential bolt 190003803712
4 199012320198 Differential housing assembly
  F19901232019801 Differential assembly
5 118000320131 Half shaft gear gasket (on demand)
6 199012320009 Half shaft gear
7 DZ90129320002 Cross shaft assembly
8 DZ90129320003 Planetary gear
9 DZ90129320082 Planetary gear gasket
10 DZ9114420671 Bevel gear pair
12 DZ9114320013 Bevel gear bolt
  DZ9114320011 Bevel gear bolt
