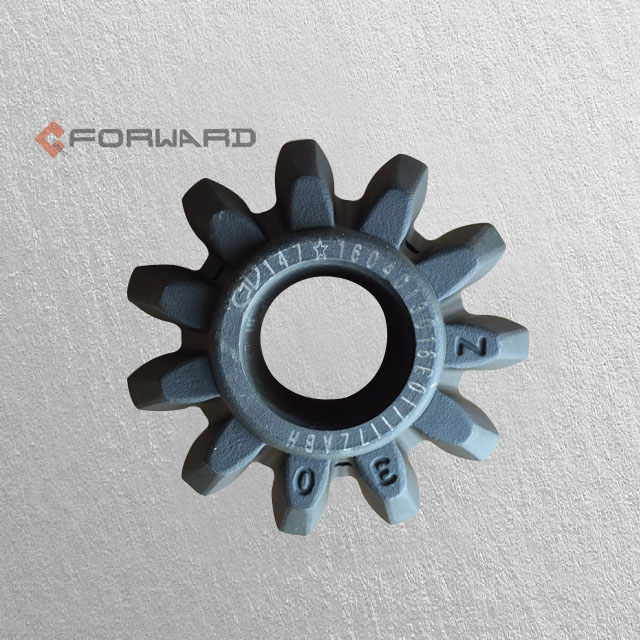

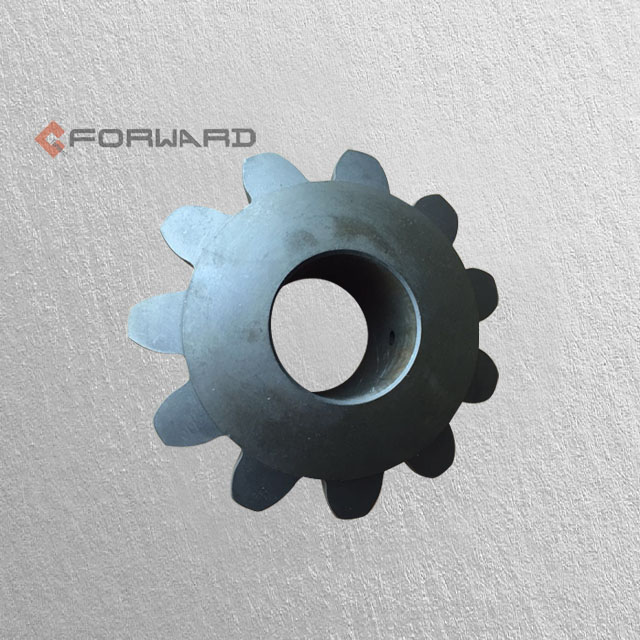

DZ90129320003 行星齒輪

濟南向前汽車配件有限公司供應DZ90129320003 行星齒輪【DZ90129320003】,價格25.00元/Pcs/Set,下面是詳細參數及照片。
DZ90129320003,Planetary gear,濟南向前汽車配件有限公司
DZ90129320003,Planetary gear,濟南向前汽車配件有限公司DZ90129320003,Planetary gear,濟南向前汽車配件有限公司

產品: Planetary gear
圖號:

DZ90129320003

車型: SHACMAN 6*6 6*4 8*4 8*8
apply: HDM300 HDS300 HDS7.5T
Size:mm: 80*80*30
Weight:kg: 0.7
單價: 25.00元/Pcs/Set
所在地: 山東 濟南市 山東濟南泉利重配城
有效期至: 長期有效
最后更新: 2025-04-23 16:08
瀏覽次數: 444
從恒科汽配網上聯系我們

公司基本資料信息
詳細說明
服務條款 豪沃發動機總成
DZ90129320003,Planetary gear,濟南向前汽車配件有限公司 DZ90129320003,Planetary gear,濟南向前汽車配件有限公司
 Planetary gear action:



     Rotation occurs at the same time of revolution, which automatically increases the speed of the outer wheel and speeds up the outer wheel while slows down the inner wheel, thus playing a differential role. The differential does not work in a straight line. For the vehicle as a whole, the differential is just a small assembly mounted between the two drive halves. But without it, with a rigid connection between the two drive half-shafts and the right and left wheels rotating at the same speed, the car would only travel in a straight line, without turning. The differential has played a huge role in cars since it was invented a hundred years ago by Louis Renault, the founder of the Renault Motor Company. Every car now has a differential.

As the name suggests, the purpose of a differential is to make the wheels spin differently on either side. When the car takes a turn, such as a left turn, with the centre of the curve on the left, the right wheel travels longer than the left wheel in the same amount of time, so the right wheel turns faster. To achieve this effect, you have to adjust the differential. The differential consists of the differential housing, the planetary gear, the planetary gear shaft and the half shaft gear and other mechanical parts.

After the engine power enters the differential through the transmission shaft, it drives the differential housing directly, and then transfers it to the planetary gears, which drive the left and right axle gears, thus driving the wheels. The sum of the left and right shafts is equal to twice the speed of the differential housing. When the car is moving in a straight line, all three speeds are the same. When turning, due to the change of vehicle stress, the feedback is on the left and right axle, thus destroying the original balance of the differential. At this time, the speed is redistributed, leading to the decrease of the speed of the inside wheel and the increase of the speed of the outside wheel, thus reaching the balance state again. At the same time, the car completes the turn.

Now, in addition to this basic differential, there are several other types of differential, such as central differential, limited slip differential, and so on.

1 138090320159 Differential adjustment nut
2 190003326148 Tapered roller bearing 32216
3

Q151B1480TF2

Differential bolt 190003803712
4 199012320198 Differential housing assembly
5 118000320131 Half shaft gear gasket (on demand)
6 199012320009 Half shaft gear
7 DZ90129320002 Cross shaft assembly
8 DZ90129320003點擊查看詳情 Planetary gear
9 DZ90129320082 Planetary gear gasket
10 DZ9114420671點擊查看詳情 Bevel gear pair
12 DZ9114320013 Bevel gear bolt
  DZ9114320011 Bevel gear bolt
